Low carbon steel wire production equipment

Producing process of nail steel wire and no-wash nail wire

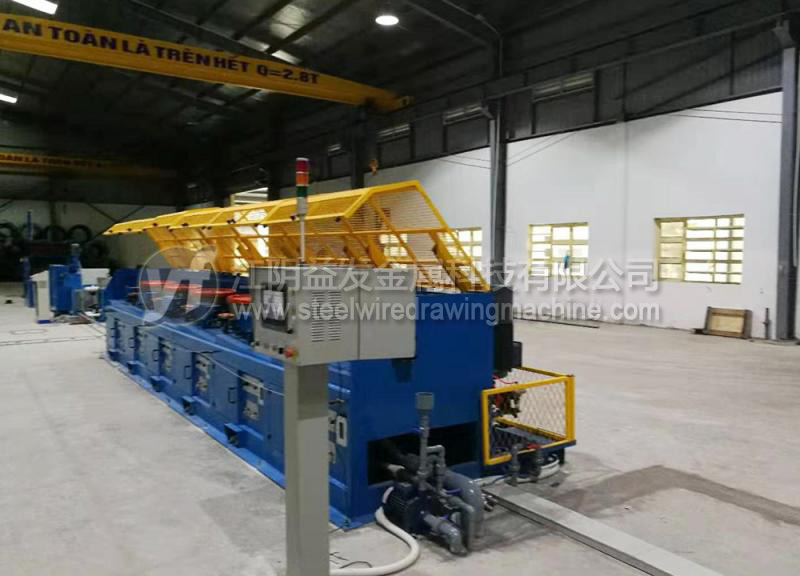

Producing process of nail steel wire and no-wash nail wire

features: Φ2mm nail steel wire production speed: 10 m / s, output: 800kg / h

the output of Φ2mm common nail black wire can reach up to: 1700kg/h

process flow:Wire pay offstraighteningmechanical rust removalabrasive belt polishingstright wire drawing machinetension standtrunk type wire take up machine

View more+

Bundling, packing wire, production process

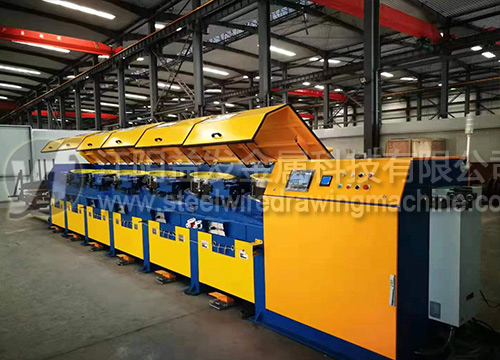

Bundling, packing wire, production process

features: Φ2mm steel wire production speed: 20 m / s, output: 1700kg / h,

Φ1mm steel wire production speed: 30 m / s, production: 650kg / h

rough drawing:Wire pay offmechanical rust removal → (abrasive belt polishingboron coated) → stright wire drawing machinetension standtrunk type wire take up machine
annealing
fine drawing:semi-finished product wire pay offstright wire drawing machinetension standtrunk type wire take up machine

View more+

Bright steel wire production process for chrome, galvanized, copper-plated furniture, supermarket carts, shelves, hangers, home appliances, etc.

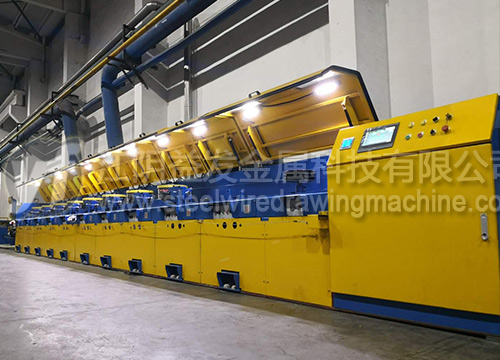

Bright steel wire production process for chrome, galvanized, copper-plated furniture, supermarket carts, shelves, hangers, home appliances, etc.

features: Φ2mm steel wire production speed: 8 m / s, output: 600kg / h

process flow: rough drawing: Wire pay offmechanical rust removalabrasive belt polishingstright wire drawing machinetension standtrunk type wire take up machine
annealing
fine drawing:semi-finished product wire pay offstright wire drawing machinetension standtrunk type wire take up machine

View more+

Wire mesh, welded wire steel production process

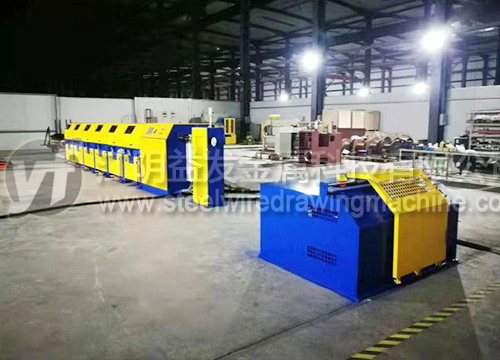

Wire mesh, welded wire steel production process

features: Φ2mm steel wire production speed: 20 m / s, production: 1700kg / h

Φ1mm steel wire production speed: 30 m / s, output: 650kg / h

process flow: rough drawing:wire pay offmechanical rust removalstraightenerabrasive belt polishingstright wire drawing machinetension standtrunk type wire take up machine
fine drawing:semi-finished material dischargestright wire drawing machinetension standtrunk type wire take up machine

View more+

Steel fiber steel wire production process

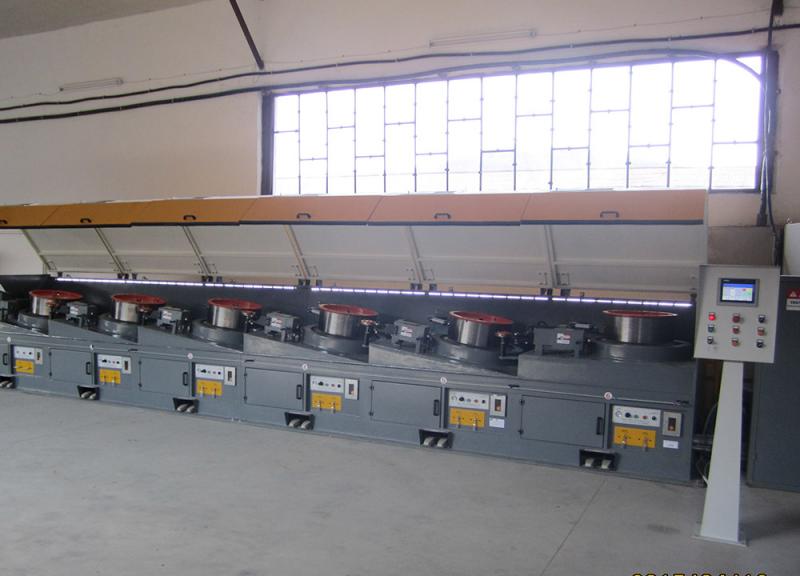

Steel fiber steel wire production process

features: Φ2mm steel wire production speed: 20 m / s, production: 1700kg / h

Φ1mm steel wire production speed: 30 m / s, output: 650kg / h

process flow: rough drawing:wire pay offmechanical rust removalabrasive belt polishingboron coatedstright wire drawing machinetension standtrunk type wire take up machine
fine drawing:semi-finished product wire pay offstright wire drawing machinetension standtrunk type wire take up machine

View more+

Construction steel wire production process

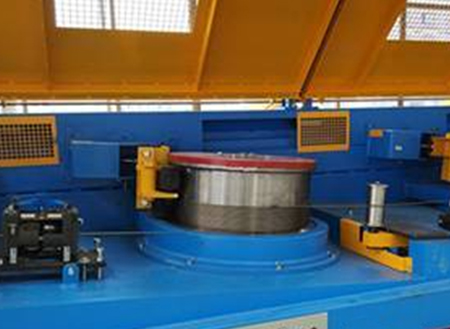

Construction steel wire production process

features: Φ3mm steel wire production speed 6 m / s, output: 1100kg / h

process flow:wire pay offmechanical rust removalabrasive belt polishingservo direct-connect wire drawing machine (or ac variable frequency stright drawing machine) (last roll mode drawing)tension standtrunk type wire take up machine

View more+

Hanger wire production process

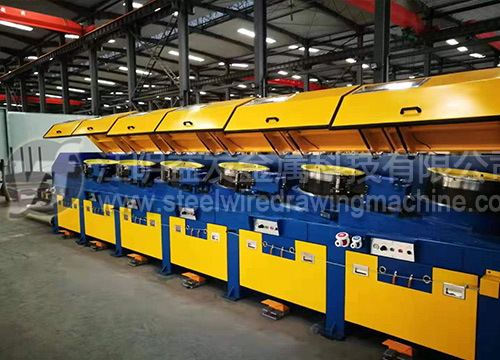

Hanger wire production process

features: Φ2mm steel wire production speed: 16 m / s, output: 1400kg / h

process flow:Wire pay offmechanical rust removalboron coatedservo direct-connect wire drawing machine (or ac variable frequency stright drawing machine)tension standtrunk type wire take up machine

View more+

Screw wire production process

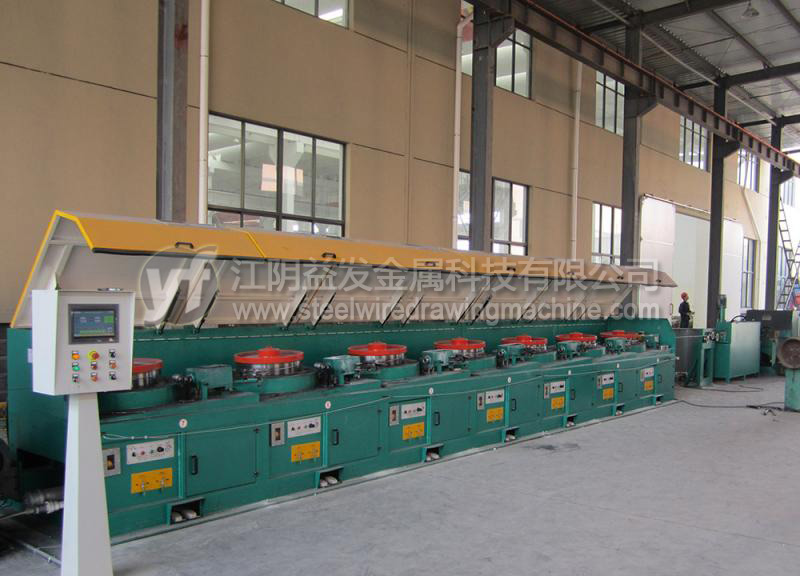

Screw wire production process

features: Φ2mm steel wire production speed: 16 m / s, output: 1400kg / h

process flow:Wire pay offmechanical rust removalboron coatedservo direct-connect wire drawing machine (or ac variable frequency stright drawing machine)tension standtrunk type wire take up machine

View more+

Acid-free galvanized steel (iron) wire production process

Acid-free galvanized steel (iron) wire production process

features: Φ2mm steel wire production speed: 20 m / s, production: 1700kg / h

Φ1mm steel wire production speed: 20 m / s, output: 400kg / h

process flow: rough drawing:Wire pay offmechanical rust removal( → sheller,straightener)abrasive belt polishingboron coatedservo direct-connect wire drawing machine (or ac variable frequency stright drawing machine)tension standtrunk type wire take up machine
annealing,galvanized(galvanized tank,rewinding machine
fine drawing:semi-finished product line after galvanizingwet wire drawing machinetension standtrunk type wire take up machine (i-spool wheel take-up line)

View more+

Cable, communication wire, PC wire production process

Cable, communication wire, PC wire production process

features: Φ2mm steel wire production speed: 20 m / s, production: 1700kg / h

Φ1mm steel wire production speed: 30 m / s, output: 650kg / h

process flow: rough drawing:Wire pay offmechanical rust removalabrasive belt polishingservo direct-connect wire drawing machine (or ac variable frequency stright drawing machine)tension standtrunk type wire take up machine
annealing
fine drawing:semi-finished wire after copper platingwet wire drawing machinetension standi-shaped wheel take-up line

View more+

Food grade steel wire production process in household appliances

Food grade steel wire production process in household appliances

features: Φ2mm steel wire production speed: 10 m / s, production: 900kg /

process flow:wire pay offmechanical rust removalabrasive belt polishingstright roller die drawing machinetension standtrunk type wire take up machine

View more+

Vehicle steel wire production process

Vehicle steel wire production process

features: Φ2mm steel wire production speed: 10 m / s, production: 900kg /

process flow:wire pay offmechanical rust removalabrasive belt polishingstright roller die drawing machinetension standtrunk type wire take up machine

View more+

Agricultural (vegetable) greenhouse frame steel wire production process

Agricultural (vegetable) greenhouse frame steel wire production process

features: Φ2mm steel wire production speed: 20 m / s, production: 1700kg / h

process flow:wire pay off mechanical rust removalabrasive belt polishingboron coateddryingstright roller die drawing machinetension standtrunk type wire take up machine

View more+

Art (flower arrangement) steel wire production process

Art (flower arrangement) steel wire production process

features: Φ2mm steel wire production speed: 20 m / s, production: 1700kg / h

Φ1mm steel wire production speed: 30 m / s, output: 650kg / h

process flow: rough drawing:Wire pay offmechanical rust removalboron coatedstright wire drawing machinetension standtrunk type wire take up machine
annealing
fine drawing:semi-finished product wire pay offwet wire drawing machinetension standtrunk type wire take up machine (i-spool wheel take-up line)
