The belt polishing machine replaces the pickling with an environmentally friendly and non-discharge method, and removes 98% of the oxide layer on the surface of the wire (raw material).
This machine adopts a 5.5KW motor to rotate the turntable around the steel wire 360° to ensure that the steel wire is in contact with the abrasive belt. The abrasive belt drives the two rotating rollers from 5.5KW to tightly press the surface of the wire to move, so that the surface of the wire is slightly For cutting, the surface of the wire will be evenly removed by 0.03mm. However, when the belt is working, the falling oxide scale is stuffed between the sand particles, and the belt is slowly invalidated, usually no more than 24 hours. In order to improve the belt. For the service life, placing the steel brush peeler in front of the belt machine not only ensures that the steel wire is 100% removed from the oxide layer but also increases the belt usage time by 10 times.
The sand size of the sand belt recommended by the company is between 40 mesh and 240 mesh. The larger the mesh, the smoother the wire surface. The 240 mesh sand can make the wire surface smooth like a mirror. The steel wire can be directly chrome-plated or galvanized. .
The belt polishing machine produced by our company has a simple structure. It takes only one minute to replace two belts. The belt positioning system is simple and flexible. The commissioning time is only 10 minutes. When used, the belt will never move or slide.
The belt polishing machine produced by our company is equipped with a 280-mesh belt to make the polished steel wire smooth and delicate, directly chrome-plated or galvanized.
The company's belt polishing machine can increase the speed of low-carbon steel wire drawing and produce ordinary black iron wire. The belt belt machine can be used between the wire drawing machine and the shelling machine to form a spiral stripe on the surface of the steel wire with a stripe depth of about 0.03mm. These nebulous stripes can make the steel wire enter the mold to carry better lubricating powder, so the drawing speed is generally increased by 30%. If the mold is nano-coated, the 2mm steel wire has a line speed of at least 20 meters per second, and the 1mm steel wire is out. The speed is at least 30 m / s. And the mold life is usually 500 tons.
The belt polishing machine produced by our company is used to produce welding wire. The coating die saves boron and drying, and the cost per ton of welding wire is reduced by 100 yuan.
The belt polishing machine produced by our company is used to produce stainless steel wire, which can be coated with coating agent and dried without any weather interference, saving cost of more than 50 yuan.
The company's production of belt polishing machine for the production of high carbon steel wire can be acid-free, in line with environmental requirements.

Belt rust remover

Belt rust removal

Belt rust remover

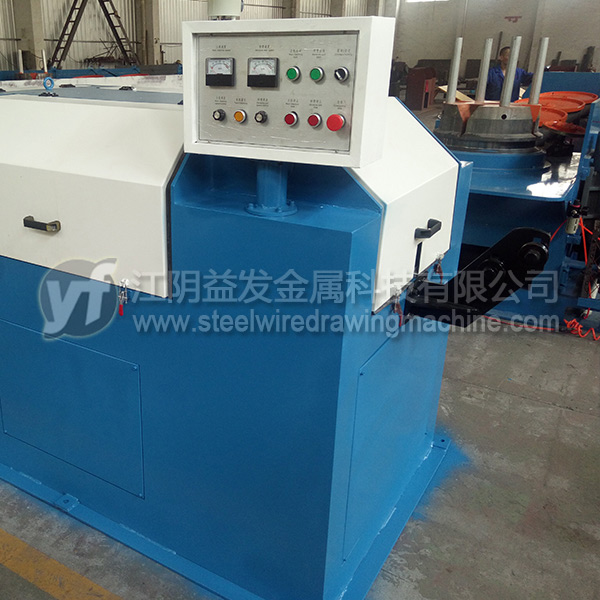

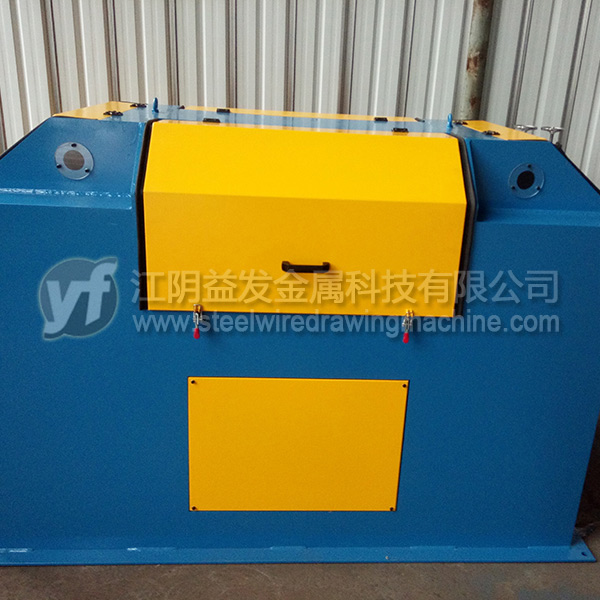

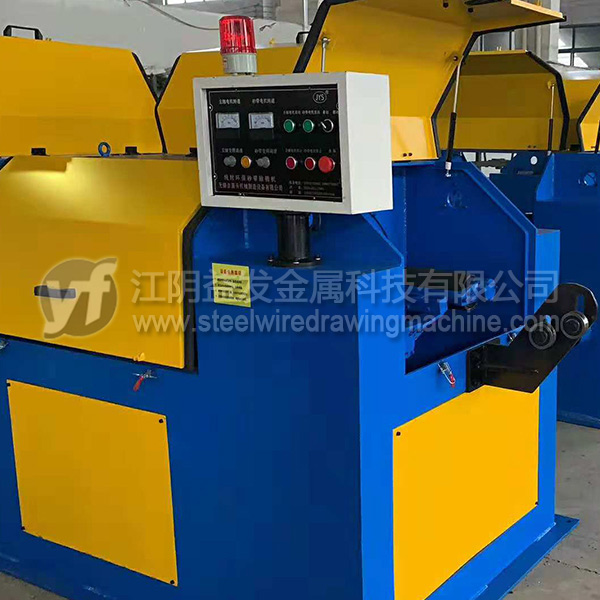

Belt polishing machine
